IBC Tank Container Tank (Cheapest Grade AN2850314 | No Brand), Steel Pallet, 1000Liter, Non-flammable Liquid

Product Description

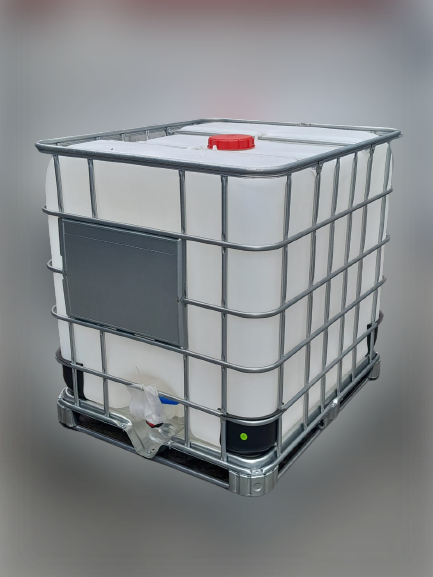

Outer Container: Rectangular grid box made of tubular Steel material, with the bottom plate, connected on top with a tie-bar, and a large label plate on the front side.

• Material: Grid / Bottom plate: Steel, galvanized

Inner Container: Rectangular blow-molded tank of high-density polyethylene, with filling an opening in the middle of the top section. Discharge opening at the bottom of the front side.

• Material: PE-HD, natural

Filling Opening: DN150 with external thread, closed with screw cap and gasket.

• Material: Screwcap DN150: PE-HD, black, O-ring gasket: TPE

Discharge Opening: Integrated butterfly-valve DN50 with blue handle, secured with a clip. Outlet sealed with PE-lined Alu-film. The valve closed with a screw cap, PE-disk and flat gasket. The outlet nozzle enclosed.

• Pallet: Steel-frame pallet (1000 x 1200 mm), 4-way entry
• Recommended usage: Non-flammable liquid

Product Specifications

• Nominal Capacity: 1000 Litre
• Brimful Capacity: 1060 Litre
• Length: 1200mm
• Width: 1000mm
• Height with Pallet: 1160mm
• Filling opening: 150mm
• Discharge opening: 50mm
• Fork opening: 100mm
• Label plate: 1piece
• Weight inner container: 14,0 kg
• Weight total approx: 54,0 kg
• Technical subject to change, all dimensions approximately only

Note:

• The product images shown are for illustration purposes only and may not be an exact representation of the product. We reserve the right to change product images and specifications at any time without notice.
• There will be + - differences in the design shown above, but it will not affect the use of products.
• Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
• Buyer has to accept slight errors due to manual measurement.
